Worldwide BI

Overview

WorldWide BI marked my first true encounter with Data Science and Big Data architecture. The premise for this project was very interesting: take three massive datasets, each containing roughly one million observations regarding natural disasters (Earthquakes, Tsunamis, and Volcanic Eruptions) and transform them from meaningless rows of raw text into actionable, visual insights. It’s one of those things where we never really understand how it’s done and how hard it is until we try it out for ourselves.

This project was a comprehensive exercise in exploratory data analysis (EDA), database architecture and data visualization.

Architecture & Data Warehouse

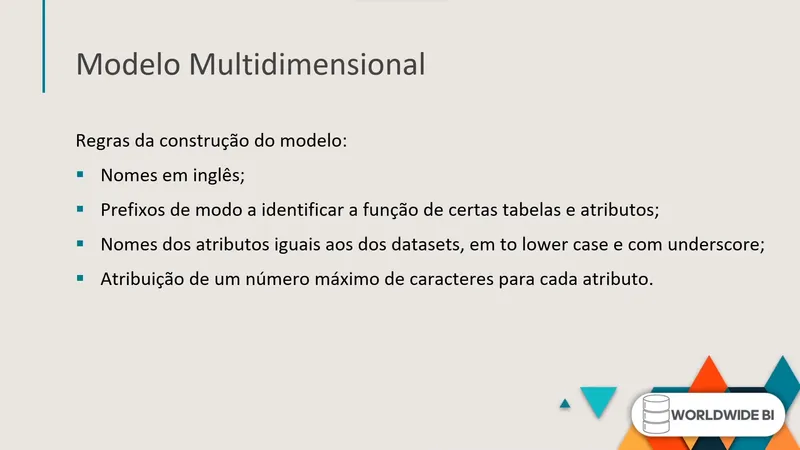

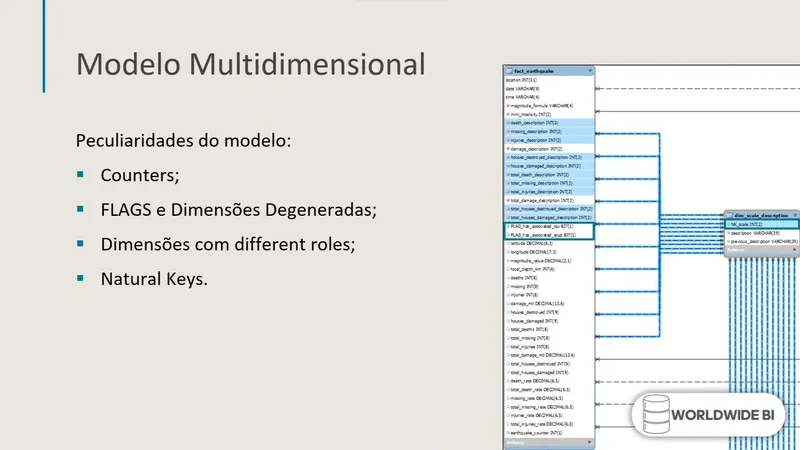

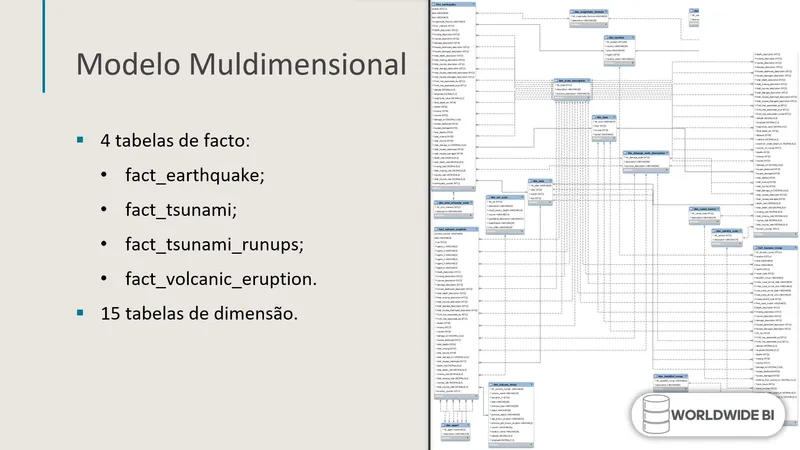

Before any visualization could happen, the data needed a reliable home. Working as part of a team, we designed and developed a custom Data Warehouse utilizing a Dimensional Model (Star Schema) in MySQL.

A key architectural decision was implementing Slow Changing Dimensions. This allowed our dimension tables to be updated dynamically over time, ensuring the Data Warehouse could handle new incoming disaster data without requiring a complete wipe and re-population of the database.

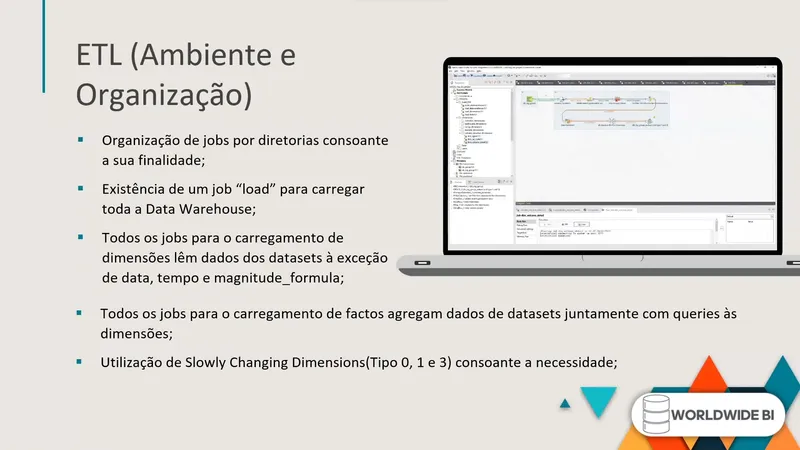

The ETL Pipeline

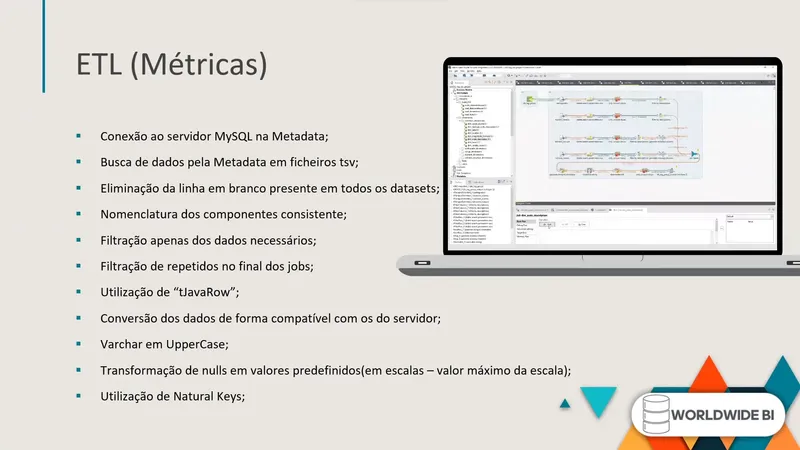

The most critical, phase of the project was the Data Integration and ETL (Extract, Transform, Load) process.

• Exploration: Every attribute was meticulously inspected using Talend Data Quality to identify anomalies, outliers, and problematic data.

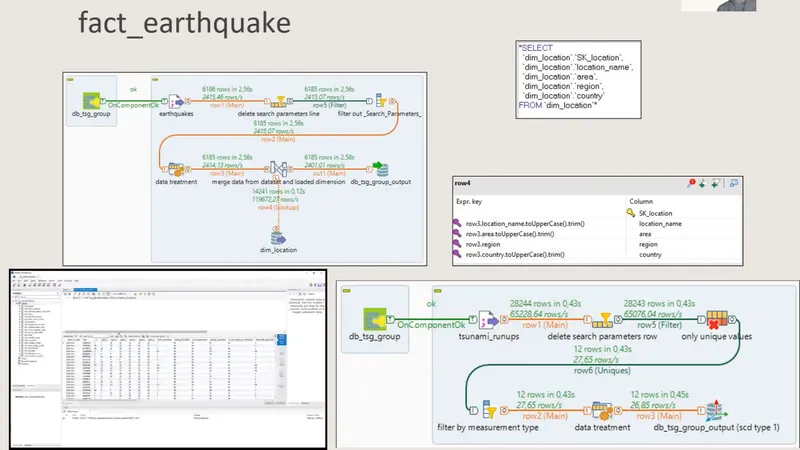

• Transformation: We developed custom ETL scripts in Java using Talend Open Studio.
• Sanitization: To ensure data integrity, we implemented a pattern-based sanitization process. For example, null or empty values were systematically replaced with the maximum out-of-bounds value for their specific scale (e.g., assigning ‘99’ on a 1-10 scale) to keep the data clean without losing the row entirely.

Analytics & Visualization

With a populated Data Warehouse and clean data, we built highly optimized View Tables specifically tailored for analytics.

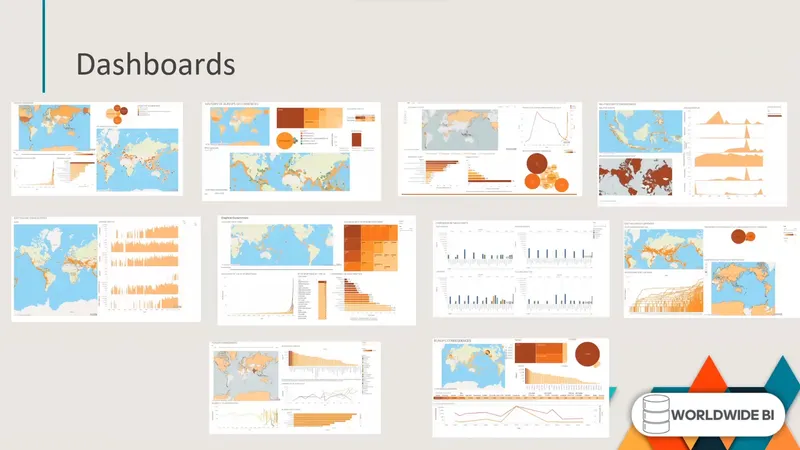

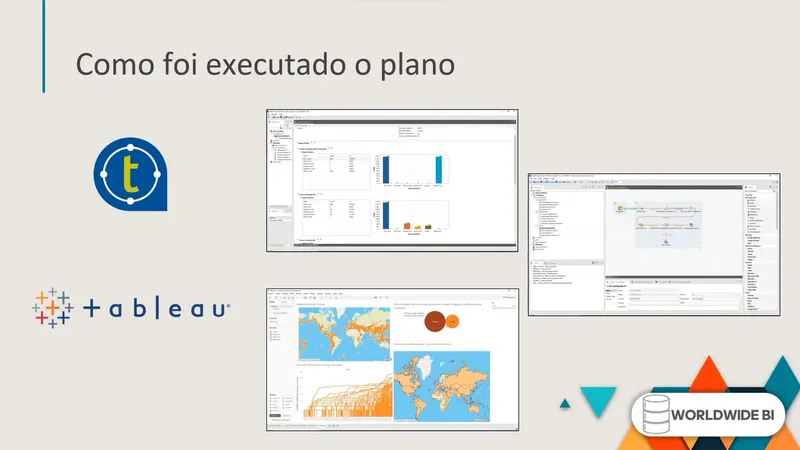

These views were connected to Tableau, where we designed and implemented a series of interactive dashboards. It was incredibly rewarding to finally see the culmination of our backend work translate into clean, visual representations of global disaster trends.

Retrospective

Diving blindly into Data Science was a massive challenge. It required revisiting forgotten statistical techniques, navigating the complexities of large-team dynamics, and piecing together Data Warehousing concepts with limited clear online documentation.

However, the struggle was entirely worth it. The project earned a perfect score (20/20) and provided a highly realistic depiction of what working with Big Data looks like in the industry. It laid the foundational knowledge for my ongoing interest in data-driven engineering and proved that with the right pipelines, even a million rows of chaos can make perfect sense.
